Selected Option: Cross section - All

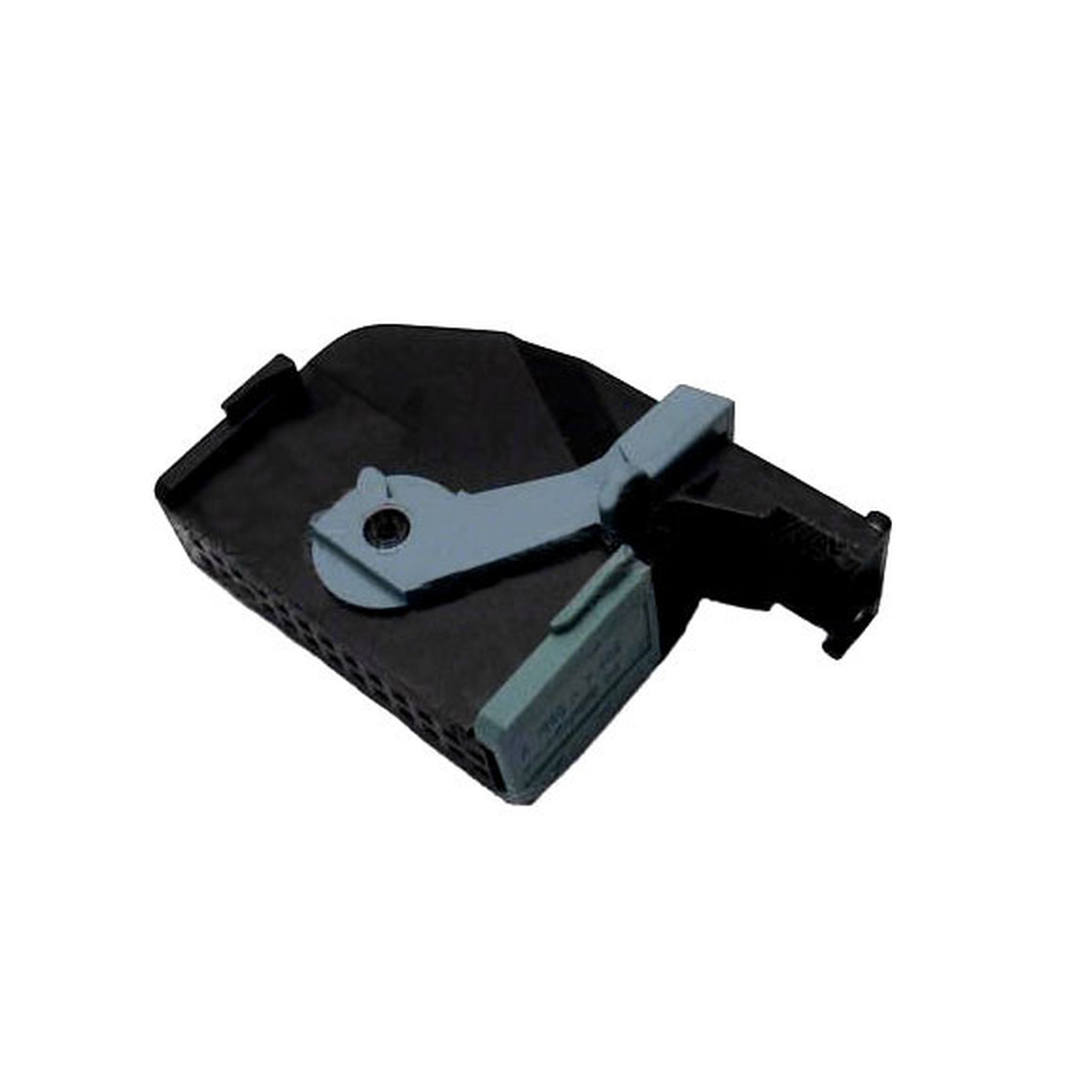

- 26 pin connector for re-tooling and repair work
- Suitable for head unit:
- VW MFD 1
- Audi RNS-D (Navi Plus)
- There are 3 different options available:
- Connector / plug
- Only the pure connector is supplied here
- Connector / plug + contact material
- Here we deliver the connector and the required contact material
- For automotive cables FLRY 0.35mm² - 0.5mm²
- Fully assembled connector / plug
- Cable length: 600mm
- 0.5mm² FLRY vehicle cables with reduced wall thickness and high concentricity according to the standards ISO 6722, DIN 72551, LV 112
- Assembled single cable similar to 000 979 010 E (0.5mm²)
- Produced on fully automatic machines with crimp force monitoring (process monitoring)
- Approved for the automotive sector (temperature range from -40 ° C to 105 ° C)
- Cables comply with the EU directive for end-of-life vehicles 2000/53 / EG (EU end-of-life vehicle regulation)
Selectable options:
- Connector only (Siemens connector 26 pin)
- Connector + contact material (Siemens connector 26 pin + 26x contacts)
- Assembled repair kit (Siemens connector 26 pin with fully crimped connecting cables) 0.5mm²
